【引言】
绝大多数养殖户、加工厂沿用的传统滚筒、静置烘干模式，都属于老旧的静态表层脱水逻辑，只适合干燥、松散、低粘度物料，完全适配不了高湿、高粘、易发酵的鲜鸡粪。这也是市面上普遍出现粘壁糊料、堵料停机、干湿不均、夹生发霉、成品不达标等一系列问题的核心根源。
Most breeders and processing plants still rely on traditional rotary drum and static drying technologies, which follow the outdated logic of static surface dewatering. These methods are only suitable for dry, loose and low-viscosity materials and cannot handle fresh chicken manure featuring high moisture, high viscosity and a tendency to ferment. This is the root cause of common industry problems including wall fouling, material blockages leading to shutdowns, uneven drying, under-dried and mouldy material, and substandard finished products.

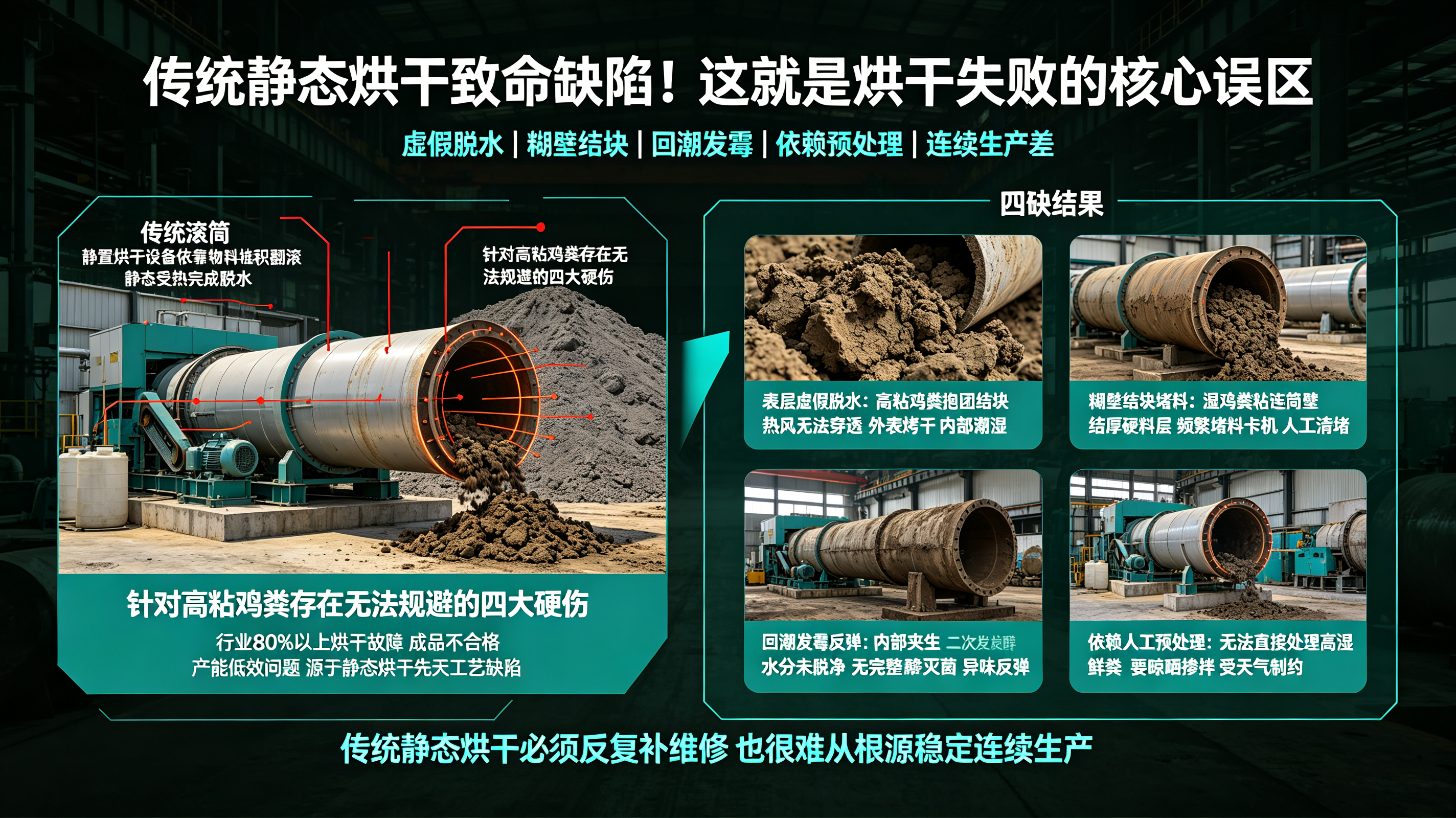

一、传统静态烘干致命缺陷！这就是烘干失败的核心误区
目前行业80%以上的烘干故障、成品不合格、产能低效问题，都源于静态烘干的先天工艺缺陷。传统滚筒、静置烘干设备，依靠物料堆积翻滚、静态受热完成脱水，针对高粘鸡粪存在无法规避的四大硬伤。
1、表层虚假脱水，内部持续夹生
静态烘干仅能对物料表层加热脱水，高粘鸡粪抱团结块后，内部物料完全隔绝热风，出现“外表烤干、内部潮湿”的两极问题。看似烘干完成，实则内部含水率严重超标，成品品质极差。
2、高粘物料糊壁结块，频繁堵料停机
湿鸡粪粘性极强，静态堆积翻滚过程中，会持续粘连筒壁、结厚料层，越积越厚、越烤越硬，频繁造成堵料、卡机。设备需要频繁停机人工清堵，无法连续生产，运维成本极高。
3、成品极易回潮发霉，二次发酵异味反弹
因为内部物料夹生、水分未脱净，且无完整灭菌工艺，烘干后的鸡粪存放过程中会快速回潮、升温、二次发酵，滋生霉菌虫卵，重新产生浓烈异味，既过不了环保检查，也达不到有机肥商用标准。
4、依赖人工预处理，失去烘干设备价值
传统设备无法直接处理高湿鲜粪，必须提前晾晒、掺拌干料降低湿度，不仅占用大量场地、耗费人工，还受天气制约，彻底失去自动化烘干高效、省心、稳定的核心优势。
I. Fatal Defects of Traditional Static Drying — The Core Misconception Behind Failed Drying
Over 80% of drying breakdowns, non-conforming products and low-capacity inefficiencies in the industry stem from inherent process flaws in static drying. Traditional rotary drum and static dryers achieve dewatering through piled material tumbling and static heating, and have four unavoidable critical weaknesses when processing high-viscosity chicken manure:
False surface drying with persistent under-dried cores Static drying only heats and removes moisture from the material surface. Once high-viscosity chicken manure clumps, the inner mass is completely isolated from hot air, creating a paradox: the exterior appears dried while the interior remains damp. Though drying seems complete, internal moisture content far exceeds standards, resulting in poor product quality.
Material sticking and caking on cylinder walls, frequent blockages and shutdowns Wet chicken manure has strong viscosity. During static tumbling, it continuously adheres to cylinder walls and forms thick, hardened deposits. This causes frequent jams and blockages, requiring repeated shutdowns for manual clearing. Continuous production becomes impossible and maintenance costs soar.
Finished product prone to rewetting, moulding and odour rebound from secondary fermentation Due to residual moisture inside under-dried material and the absence of complete sterilisation, dried chicken manure quickly absorbs moisture, heats up and undergoes secondary fermentation during storage. Mould and parasite eggs develop, and strong odours return. Such products fail environmental inspections and cannot meet commercial organic fertiliser standards.
Dependence on manual pre-treatment, negating the value of drying equipment Traditional machines cannot process high-moisture fresh manure directly. Pre-drying in the open air or mixing with dry material is mandatory to reduce moisture. This occupies large land areas, consumes labour and is subject to weather conditions, stripping drying equipment of its core advantages of automation, efficiency, convenience and stability.
二、卧式闪蒸四大核心工艺拆解！四合一协同适配高粘鸡粪
金万泓卧式闪蒸烘干体系，摒弃传统静态堆积换热模式，创新搭载强力打散破团+热风悬浮流化+梯度分层脱水+瞬时高温灭菌四大核心工艺，四道工序一体化协同作业，每一项工艺都精准针对鸡粪高湿、高粘、易发酵的专属特性设计，从原理上根治行业烘干顽疾。
1、强力打散破团工艺：从源头杜绝结块堆积
设备内置高速耐磨打散转子，高湿抱团、板结的鲜鸡粪进入腔体后，瞬间被高速撕裂、打散、细化，彻底打破物料黏连抱团状态，将大块物料拆解为均匀细小颗粒。从根源解决鸡粪结块、堆积、堵料问题，为全方位均匀脱水奠定基础，无需任何人工预处理。
2、热风悬浮流化工艺：告别静态受热，实现无死角烘干
这是区别于传统设备的核心关键技术。卧式腔体形成闭环旋流热风场，打散后的鸡粪颗粒在热风作用下全程悬浮流动、动态换热，不落地、不堆积、不贴壁。每一粒物料360°全方位接触热风，彻底消除烘干死角，杜绝干湿不均、局部夹生问题。
3、梯度分层脱水工艺：循序渐进脱水，不焦料、不碳化
设备腔体分区控温，分为预热除湿区、快速脱水区、恒温定型区、降温稳质区，采用梯度递进式脱水逻辑。前期低温排潮、中期高温脱水、后期恒温稳质，避免单一高温直烘导致的表层碳化、有机质流失问题，精准把控烘干节奏，保障成品色泽、肥力、品质稳定。
4、瞬时高温灭菌工艺：源头锁死二次发酵隐患
在脱水烘干的同时，利用瞬时高温技术，快速杀灭鸡粪中含有的大肠杆菌、沙门氏菌、虫卵、杂草种子及各类有害致病菌，一次性完成脱水+无害化双重处理。彻底消除物料内部活性发酵因子，杜绝成品存放回潮、发霉、异味反弹问题，成品完全符合有机肥无害化国标。
II. Four Core Processes of Horizontal Flash Evaporation — Four-in-one Synergy for High-viscosity Chicken Manure
Jinwanhong’s horizontal flash evaporation drying system abandons the static piled heat exchange model. It innovatively integrates four coordinated core processes: high-power lump breaking, hot-air suspension fluidisation, gradient staged dewatering and instantaneous high-temperature sterilisation. All four processes work in tandem and are designed specifically for the high-moisture, high-viscosity and fermentable properties of chicken manure, fundamentally resolving persistent drying pain points in the industry.
High-power lump breaking: Eliminate caking and accumulation at the source The machine is fitted with high-speed wear-resistant breaking rotors. Once high-moisture, clumpy and compacted fresh chicken manure enters the chamber, it is instantly torn, broken down and refined. Material agglomeration is fully eliminated, and large clumps are split into fine, uniform particles. This fundamentally prevents chicken manure caking, accumulation and blockages, laying the foundation for uniform all-round dewatering with zero manual pre-treatment required.
Hot-air suspension fluidisation: Ditch static heating for dead-zone-free drying This is the core technology that differentiates it from conventional equipment. A closed cyclonic hot-air field forms within the horizontal chamber. Broken chicken manure particles stay suspended and flow dynamically in hot air for heat exchange without settling, piling or sticking to walls. Every particle contacts hot air in a full 360° manner, completely removing drying dead zones and eliminating uneven drying and under-dried cores.
Gradient staged dewatering: Progressive moisture removal without scorching or carbonisation The chamber features zoned temperature control: preheating & dehumidification zone, rapid dewatering zone, constant-temperature stabilisation zone and cooling & quality-conservation zone. Dewatering proceeds in gradual stages: low-temperature moisture evacuation in the early phase, high-temperature dewatering in the middle phase, and constant-temperature quality stabilisation in the later phase. This avoids surface carbonisation and organic matter loss caused by direct high-temperature drying. The drying rhythm is precisely controlled to guarantee stable colour, fertility and quality of finished products.
Instantaneous high-temperature sterilisation: Block secondary fermentation risks from the source While dewatering takes place, instantaneous high-temperature technology rapidly kills E. coli, Salmonella, parasite eggs, weed seeds and various harmful pathogens in chicken manure. Dewatering and harmless treatment are completed in one pass. Active fermentation factors inside the material are fully eliminated, preventing rewetting, moulding and odour rebound during storage. Finished products fully meet national harmlessness standards for organic fertiliser.
三、无接触防粘堵技术：90%高湿鲜粪直接进料，零预处理
传统设备故障90%来源于“物料粘壁堆积”，而卧式闪蒸设备从物理原理上彻底解决这一难题。
金万泓专属动态悬浮无接触烘干技术，改变物料受力与运行状态：传统设备物料靠筒壁支撑翻滚，必然粘连堆积；而卧式闪蒸设备依靠热风浮力，让湿料全程悬浮在腔体热风当中，不接触筒壁、无死角堆积、无结团粘料。
依托这项核心技术，设备可直接处理含水率高达85%-90%的新鲜鸡粪，无需晾晒、无需掺干料、无需人工翻抛预处理，真正实现粪污随产随清、鲜料直接烘干，不受天气、季节影响，全年稳定作业。
III. Non-contact Anti-blocking Technology: Direct Feeding of 85%–90% High-moisture Fresh Manure, No Pre-treatment Needed
90% of failures on traditional equipment arise from material sticking and accumulation on walls. The horizontal flash evaporation dryer fundamentally solves this problem through physical principles.
Jinwanhong’s proprietary dynamic suspension non-contact drying technology changes the force and movement state of materials. In traditional dryers, materials tumble supported by cylinder walls, inevitably leading to adhesion and accumulation. In contrast, the horizontal flash evaporation dryer uses hot-air buoyancy to keep wet material suspended in the hot-air stream throughout the chamber. Materials never touch cylinder walls, so no dead-zone accumulation or clumping occurs.
Leveraging this core technology, the dryer can directly process fresh chicken manure with moisture content as high as 85%–90%. No sun drying, no dry material blending and no manual turning pre-treatment are required. Manure can be treated immediately upon generation, fresh material can be fed directly, and operations run steadily year-round independent of weather and seasons.
四、智能精准控温脱水：含水率精准可调，批次品质统一
成品品质不稳定、干湿参差不齐，核心症结在于温度、风速、进料速度无法精准调控。金万泓卧式闪蒸烘干机搭载全自动智能变频温控系统，实现全维度精准调控。
设备可实时感应进料湿度、进料量、腔体温度，自动动态调节热风温度、风道风速、物料停留时长、进料速度。操作人员可根据自用、外销、育苗基质、燃料等不同使用需求，精准设定成品含水率。
烘干后的鸡粪干湿均匀、无硬块、无夹生、无碳化发黑，批次品质高度统一，有机质保留完整，肥力稳定，完全满足环保验收、商用外销、种养自用的多重标准。
IV. Intelligent Precision Temperature & Dewatering Control: Adjustable Moisture Content and Consistent Batch Quality
Unstable finished quality and inconsistent moisture mainly stem from imprecise control over temperature, wind speed and feeding rate. Jinwanhong horizontal flash evaporation dryers adopt a fully automatic intelligent variable-frequency temperature control system for multi-dimensional precise regulation.
The equipment senses incoming material moisture, feed volume and chamber temperature in real time, and automatically adjusts hot-air temperature, duct wind speed, material residence time and feeding rate dynamically. Operators can set target moisture content accurately according to different application scenarios including on-farm use, external sales, seedling substrate and biomass fuel.
Dried chicken manure features uniform moisture, no hard lumps, no under-dried cores and no carbonised blackening. Batch quality is highly consistent, organic matter is well preserved and fertility remains stable. It satisfies multiple requirements for environmental acceptance, commercial sales and on-site planting utilisation.
五、24小时无人值守连续作业，适配规模化养殖产能需求
针对规模化鸡场粪污产量大、持续性产出的特点，设备搭载全自动化运行体系，实现24小时无人值守连续化高效生产。
从自动上料、打散流化、梯度烘干、除尘除臭到恒温出料，全程一体化闭环自动运行，无需专人值守看管。设备自带自动清料、防堆积、防堵塞程序，无需频繁停机检修、人工清堵，有效生产时长大幅提升，完美匹配大中小型养鸡场、养殖园区的大批量粪污常态化处理需求。
V. 24-hour Unattended Continuous Operation, Matching Capacity Demands of Large-scale Breeding
Designed for large chicken farms generating large volumes of manure continuously, the machine adopts a fully automatic operating system to enable 24-hour unattended high-efficiency continuous production.
The entire closed-loop automatic workflow covers automatic feeding, breaking and fluidisation, gradient drying, dust & odour removal and constant-temperature discharging, with no on-site operator required. Built-in automatic material clearing, anti-accumulation and anti-blockage programmes eliminate frequent shutdowns for maintenance and manual clearing. Effective production time is greatly extended, perfectly matching regular large-volume manure treatment needs of small, medium and large chicken farms and breeding parks.
六、全方位性价比优势：降能耗、省人工、低运维、高收益
对比传统静态烘干设备，卧式闪蒸动态流化工艺实现全方位升级，长期运营性价比显著拉满：
✅ 能耗更低：闭环热风循环系统，热量利用率大幅提升，相比传统设备节能30%以上，长期电费成本大幅缩减；
✅ 人工极简：全自动无人值守运行，无需预处理、无需频繁清堵、无需专人盯机，极大节省人工成本；
✅ 故障率极低：从原理上杜绝粘壁、堵料、积料问题，设备运行流畅稳定，告别频繁停机维修；
✅ 运维简单：结构科学合理，易损件少、保养便捷，日常运维无需复杂操作，省时省心；
✅ 收益更高：成品品质稳定达标，可长期外销变现，兼顾环保合规与资源化增收。
VI. Comprehensive Cost-performance Advantages: Lower Energy Consumption, Less Labour, Low Maintenance and Higher Returns
Compared with traditional static drying equipment, the dynamic fluidisation process of horizontal flash evaporation delivers all-round upgrades with outstanding long-term operational cost performance: ✅ Lower energy consumption: Closed hot-air circulation greatly improves heat utilisation, cutting energy use by over 30% versus traditional dryers and reducing long-term electricity costs significantly. ✅ Minimal labour: Fully automatic unattended operation removes the need for pre-treatment, frequent blockage clearing and full-time machine attendants, drastically saving labour expenses. ✅ Extremely low failure rate: Wall sticking, blockages and material accumulation are eliminated at the principle level. The machine runs smoothly and stably without frequent breakdowns and repairs. ✅ Simple maintenance: Well-designed structure with few wearing parts and easy upkeep; daily maintenance requires no complex operations for time-saving, worry-free management. ✅ Higher revenue: Stable, qualified finished products support long-term sales and monetisation, achieving both environmental compliance and resource-based income growth.
七、全新设备迭代升级，适配复杂高负荷工况
结合各地鸡场潮湿阴雨、高负荷连续作业的复杂工况，金万泓对卧式闪蒸设备完成多重技术迭代升级，全面提升设备稳定性与使用寿命。
优化闭环热风循环结构，减少热量损耗，低温阴雨天气依旧保持高效脱水效率；升级高强度耐磨打散装置，抗造耐用、破碎效果更强，长期高负荷运行不易磨损；升级一体化除尘除臭系统，负压密闭运行，彻底杜绝粉尘、异味外泄，环保适配性拉满。
迭代后的设备，可长期适配潮湿、低温、高负荷连续生产工况，耐磨度、稳定性、使用寿命全面升级，常年稳定运行无压力。
VII. Newly Iterated Equipment Upgrade, Adapted to Complex Heavy-duty Working Conditions
Taking account of humid, rainy and high-load continuous-operation conditions on farms across regions, Jinwanhong has rolled out multiple technical iterations for horizontal flash evaporation dryers to improve stability and service life.
The optimised closed hot-air circulation structure reduces heat loss and maintains high dewatering efficiency even in low-temperature and rainy weather. The upgraded heavy-duty wear-resistant breaking device is robust, delivers stronger crushing performance and resists wear under prolonged heavy-load operation. The integrated dust and odour removal system operates under negative pressure and fully enclosed conditions to completely prevent dust and odour escape, delivering excellent environmental adaptability.
The upgraded equipment can sustain long-term operation under humid, low-temperature and heavy-load continuous production. Wear resistance, stability and service life are comprehensively enhanced for reliable year-round high-load operation.
结语
鸡粪烘干的核心差距，不在于设备大小，而在于烘干工艺原理是否适配高粘高湿物料。
传统静态烘干的先天短板，注定无法摆脱粘壁堵料、干湿不均、夹生发霉、成品不达标的行业难题。金万泓卧式闪蒸动态流化一体化工艺，以四大核心技术、无接触防粘堵原理、智能精准控温系统，彻底颠覆传统烘干模式，真正实现高湿鲜粪直接入料、全程稳定作业、成品品质达标，帮各大养鸡场彻底告别烘干误区，实现合规生产、稳定增收。
如果你也被鸡粪烘干粘壁、堵料、干湿不均、成品发霉不达标困扰，欢迎咨询金万泓机械，免费定制专属工艺方案，彻底解决烘干难题！
The key difference in chicken manure drying lies not in equipment size, but whether the drying process principle is suitable for high-viscosity and high-moisture materials.
Inherent weaknesses of traditional static drying make it impossible to escape common industry issues: wall sticking, blockages, uneven drying, under-dried mouldy material and non-compliant finished products. Jinwanhong horizontal flash evaporation integrated dynamic fluidisation technology, supported by four core technologies, non-contact anti-blocking principles and an intelligent precision temperature control system, completely revolutionises conventional drying methods. It enables direct feeding of high-moisture fresh manure, stable continuous operation and qualified finished products. It helps chicken farms escape common drying pitfalls and achieve compliant production plus steady revenue growth.
If you are troubled by wall fouling, blockages, uneven drying or mouldy, non-compliant dried chicken manure, contact Jinwanhong Machinery for a free custom process solution and complete resolution of your drying challenges.
